Multifunction semi-electric minilifter, featuring a capacity of 120 kg and a lifting height of 2900 mm

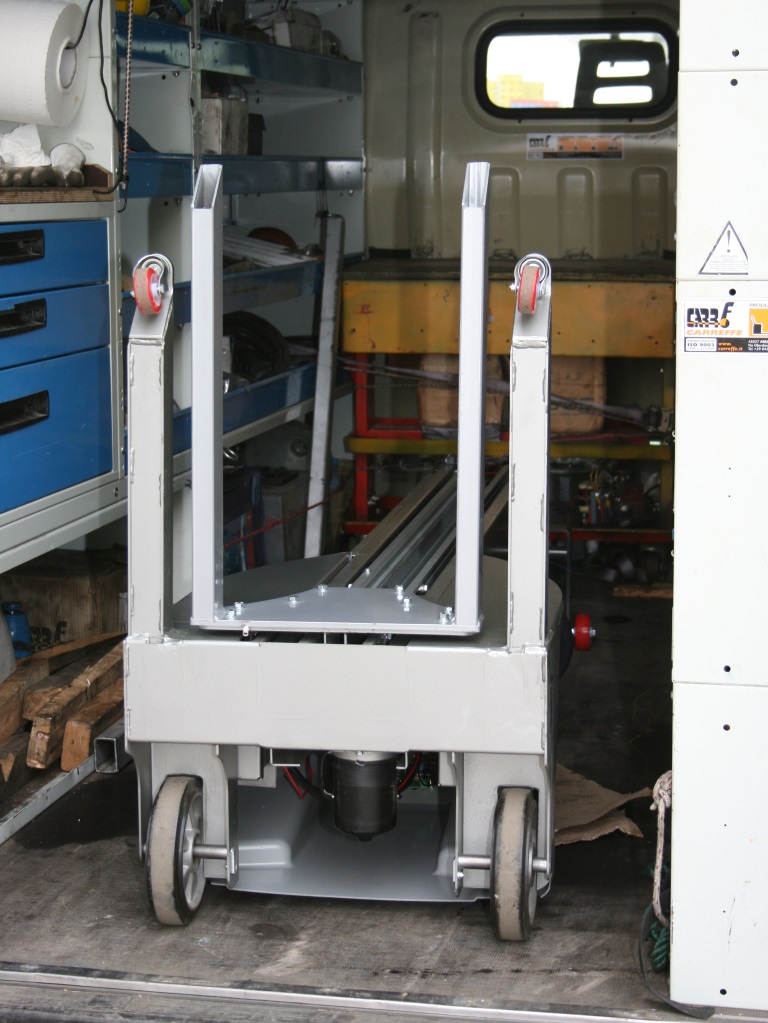

Manual traction and electric lifting mini-lifter, suitable for the installation of electric lines, hydraulic pipes, air conditioners etc. Featuring a capacity of 120 kg and a lifting height of 2900 mm. Thanks to the lifting system with worm screw actuator, Clever can be easily moved horizontally and loaded onto a vehicle. Total weight of only 120 kg, thanks to the duplex aluminium mast with a clearance of 1930 mm when closed. Supplied with an aluminium ladder with security hooks, to be safely coupled to the lifter. Includes 4x12V/18Ah maintenance free acid lead batteries and 24V/6A on board charger.
Capacity | kg | 120 |
Lifting | mm | 2900 |
Mast Height | mm | 1930 |
Rollers | N/mm | 2/60x20 |
Wheels | N/mm | 2/200x50 |
Lifting motor | V/W | 24/370 |
Lifting speed | cm/sec | 6,0/4,8 |
Battery | NxV/Ah | 4x12/18 |
Charger | V/A | 24/6 |
Weight | kg | 120 |
